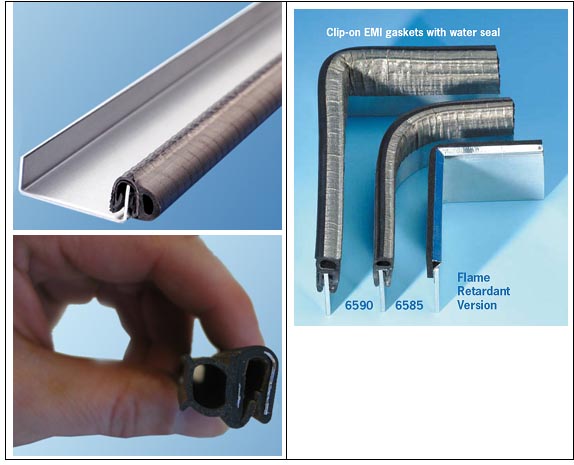

 This range of easily mounted clip-on gaskets is composed of a separate sponge rubber water seal and an EMI-shielding side of highly conductive, wear-resistant metallized fabric. The construction is very flexible thanks to the hollow rubber, so a low closure force is guaranteed.
這個系列的容易裝配的夾式墊圈由一個分開的海綿狀橡皮水封和一個EMI屏蔽側邊的高度導電的，抗磨損的用金屬處理的織物組成。結構是非常軟的由于是空的橡膠，因此確保了一個低的閉合力。

The gasket is assembled without tools, simply by pressing the section by hand onto the metal flange of you enclosure. Different sizes are available on request. The gasket can make angles in two planes where a small radius is sufficient. Temperature range from -40° tot +110° C. A flame retardant version (UL94 V0) is also available (see on the picture below).
墊圈的裝配不用工具，簡單地通過手在你的機殼金屬凸緣上壓緊。根據(jù)需求可獲得不同的尺寸。墊圈能被做成角度在兩個平面里，這里是一個足夠小的半徑。溫度范圍從-40° tot +110° C。一個阻燃劑版本（UL94 V0）也是可以獲得的（看下面的圖片）。

Dimensions尺寸

Shielding Performance屏蔽性能

Shielding effectiveness depends on surface, shape of gaskets and materials used.
屏蔽效率依據(jù)表面，墊圈的形狀和使用的材料。

Example例子
Please indicate the profile number followed by the length in meters.請下面的指出剖面號，長度是米。
