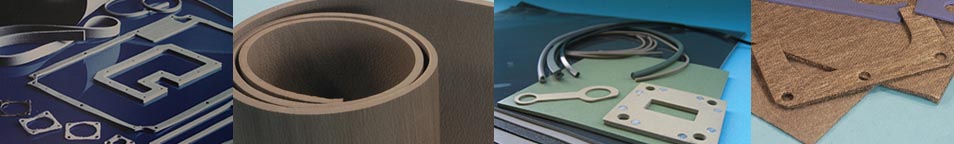

 Sheet material to die-cut complicated shapes薄板材料沖切為復雜形狀
Oriented Wire Shield 5711 - 5722 is a composite gasket material consisting of a large number of small wires embedded and bonded in solid or sponge silicone, or fluor silicone elastomer for oil-resistance.
The wires provide excellent conductivity to establish EMI / RFI shielding.
定向?qū)Ь�屏蔽5711-5722是一個合成的墊片材料，由大量的小導線嵌入和被接合在固體或海綿硅樹脂里，或氟硅樹脂人造橡膠用于耐油性。
導線提供良好的導電性以建立EMI/RFI屏蔽。
The Material is used in military, industrial and commercial products requiring EMI suppression, grounding, or static discharge. It is very suitable for applications where an environmental or pressure seal is required.
該材料被使用在軍事，工業和商業產品要求EMI抑制，接地，或靜電放電。它是非常適合于應用在一個要求環境或壓力封閉。
The sponge version is used in cases of severe joint unevenness, or if lower closure forces or greater compressibility are required.
該海綿形式被使用在嚴重的接合不平坦的情形，或如果更低的閉合力或更大的壓縮率是需要的。

Dimensions尺寸
Standard sheet of 90 x 900 mm. Bigger items can be welded/joint together. This is to prevent waste of material.
標準的薄板是90 x 900mm。大的項目能被焊接/接合在一起。這是為了預防材料的浪費。

Custom compositions are available on request, please send a drawing with dimensions to our email address

Technical specifications技術規格	Part numbers零件號
Colour顏色: Grey silicone灰色硅樹脂 Elastomer人造橡膠: Silicone or fluorosilicone Conductive filler導電填充料:  Monel wire, aluminium wire ROHS compliance: Yes Corrosion resistance耐蝕性: Yes UV resistamce耐紫外線: Yes Oil resistance耐油性: Fluerosilicone type only Fuel resistance耐燃燒性: Fluorosilicone type only IP rating: Yes	Material材料 Part number Solid silicone with monel wire 5711 Solid silicone with aluminium wire 5712 Solid fluorsilicone with monel wire 5713 Sponge silicone with monel wire 5721 Sponge silicone with aluminium wire      5722



Available thicknesses可用的厚度
 0.81, 1.13, 1.38, 1.57, 2.40, 3.18, 3.96, 4.78, 6.35 mm.
Other thicknesses on request.其它的厚度根據需求。

Performance性能

Material材料	Solid silicone with monel wire固體硅樹脂用蒙乃爾電線 5711	Solid silicone with aluminium wire固體硅樹脂用鋁線 5712	Solid fluorosilicone with monel wire固體氟硅樹脂用蒙乃爾電線 5713	Sponge silicone with monel wire海綿硅樹脂用蒙乃爾電線 5721	Sponge silicone with aluminium wire海綿硅樹脂用鋁線 5722
Color顏色	Grey灰	Grey灰	Blue藍	Grey灰	Grey灰
Wire count/ sq.inch.	900	900	900	900	900
Compression set	25%	25%	25%	25%	25%
Closing force 閉合力	25-100	25-100	25-100	5-50	5-50
Fuel/Solvent resistant	No	No	Yes	No	No
Shielding (db)屏蔽:
200 KHz	70	70	70	70	70
100 MHz	125	100	100	120	85
1.0 GHz	125	100	100	125	70
Temperature (Cº)	-65/200	-65/200	-55/200	-65/200	-65/200
