Mounting by holes in your construction裝配通過在你的結構里的安裝孔。
You can mount by pusshing in position, see picture below你能通過在位置里推進進行裝配，看下面圖片
Very low compression force and no friction drag when compressed. Excellent for "sliding" applications. Symmetrical design allows bi-directional contact engagement. Very handy for ESD grounding or RFI/EMI shielding on:
當被壓時有非常低的壓力和沒有摩擦力。卓越的用于“滑動的”應用。對稱的設計允許雙向接觸銜接。非常方便的用于ESD接地或RFI/EMI屏蔽：
- Enclosure Doors機殼門
- Enclosure Panels機殼面板
- Chassis Covers 機殼蓋
- Back Panels 背板
- Rack Drawers 機架抽屜
- Plug-In Assemblies插入部件

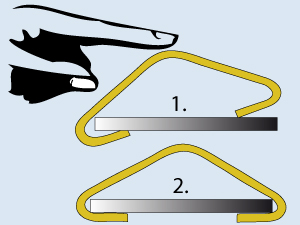

Installation is simple:安裝簡單
- Insert one edge into one of the slots 插入一個邊緣進入到一個槽內。
- Push in the direction of the slot until the second edge snaps through the slot朝槽內推進直到第二個接頭通過槽。
Part numbers marked bolt are stock items.零件號標記黑色字體的為存貨項目。

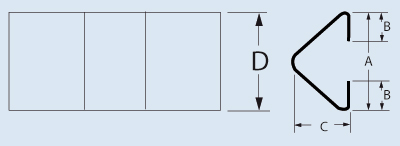

Snap On 2201扣緊
Part Number零件號 |
A |
B |
C |
D |
|
2201-01 |
13,5 |
4 |
7,8 |
6,4 |

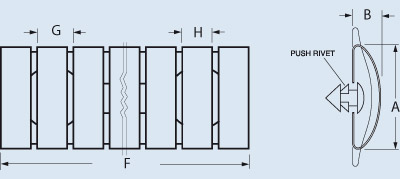

Snap On 2202扣緊
Part Number零件號 |
A |
B |
F |
G |
H |
|
2202-01 |
9,1 |
3,0 |
381 |
4,8 |
4,3 |
|
2202-02 |
9,6 |
2,8 |
381 |
4,8 |
4,3 |
|
2202-03 |
11,2 |
3,6 |
381 |
6,4 |
5,8 |
|
2202-04 |
13,0 |
3,6 |
381 |
4,8 |
4,3 |
|
2202-05 |
19,3 |
5,6 |
381 |
9,6 |
8,8 |

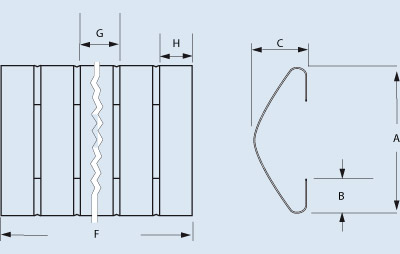

Snap On 2203扣緊
Low profile of .080" (2,0mm) allows practical installation and compression action in very minimal gap situations.
.080" (2,0mm)的低的剖面允許實際安裝和擠壓作用在非常小的間隙位置。
Long, slender finger profile yields very low compression forces and high endurance life. Works very well with "wiping" application.
長而薄的指形剖面產生非常低的壓力和高的疲勞壽命。非常好的工作于摩擦接觸應用。
Part Number零件號 |
A |
B |
C |
F |
G |
H |
|
2203-01 |
7,6 |
1,9 |
3,3 |
406 |
4,8 |
4,3 |
|
2203-02 |
8,1 |
- |
2,5 |
406 |
4,8 |
4,2 |
|
2203-03 |
8,1 |
- |
2,8 |
406 |
4,8 |
4,3 |
|
2203-04 |
8,2 |
2,1 |
3,1 |
37,5 |
4,8 |
4,3 |
|
2203-05 |
9,1 |
3,2 |
3,0 |
381 |
4,8 |
4,3 |
|
2203-06 |
9,4 |
- |
3,3 |
400 |
6,4 |
5,7 |
|
2203-07 |
11,2 |
4,0 |
3,6 |
381 |
6,4 |
5,8 |
|
2203-08 |
15,3 |
3,6 |
5,6 |
400 |
7,2 |
6,4 |
|
2203-09 |
15,3 |
- |
5,6 |
400 |
9,5 |
8,7 |
|
2203-10 |
20,3 |
- |
8,1 |
400 |
9,5 |
8,7 |
Example舉例
When you want to order snap-on fingerstrip 2202-02 then please specify the part number and the amount that you need.
當你想訂購直接固定指形簧片2202-02，那么請指定零件號和你需要的數量。
Part number零件號 |
Amount (pcs)數量 |
|
2202-02 |
10 |
|
Choose part number from the tables above從上表里選擇零件號 |
Specify the amount that you need in pieces指定你需要的數量件數 |
