Self-standing modular Faraday cage自立模塊化法拉第箱
Superior screening of RF signals, e.g. for R&D, TEMPEST and Testing purposes. The modular Faraday cage is designed to meet or even exceed the vast majority of shielding requirements. The system is constructed of shielded modular panels, available in either standard-sized or custom-designed panels to meet exacting specifications in government, industry, research and development, university or hospital use. The system is completely self-standing (independent of the host building). The modular panels can be shipped and assembled by the customer or under supervision of our engineers, anywhere in the world.
較好的屏蔽RF信號，例如用于R&D, TEMPEST和測試目的。該模塊化法拉第箱設計用于滿足或甚至超出大多數的屏蔽要求。該系統由屏蔽的模塊化板構建，可獲得或者以標準尺寸或者定制設計面板以滿足嚴格的規格在政府，工業，研究和開發，學�；蜥t(yī)院使用。該系統是完全地自身-直立（不依賴于主體建筑）。該模塊化面板能通過客戶或在我們工程師監督下運輸和裝配，在世界各地。
Applications應用
- RF measurements。 RF測量
- EMC test labs。 EMC測試實驗室。
- Wireless product testing。 無線產品測試。
- Server rooms。 服務器室。
- TEMPEST / Sensitive information protection。 防信息泄露/敏感信息保護。
- HEMP & EMP protection。 HEMP&EMP保護。
- Neuroscience laboratories。 神經科學實驗室。
- Cellular communication devices。 蜂窩通信設備。
- Immunity & emission test chambers。 抗干擾&輻射實驗室。
- Anechoic chambers 消聲室
- MRI rooms。核磁共振室。
- Neurology lab。 神經學實驗室。
- etc...等等。
High shielding performance高屏蔽性能
The shielded enclosure consists of shielding panels made of 2mm MuFerro steel; the panels are galvanized which gives the enclosure excellent resistance to corrosion. Amucor 6800 gaskets between the panels help to maintain shielding attenuation. The modular shielding does not contain any wooden parts that could be adversely affected by variations in temperature or moisture. The panels provide high shielding effectiveness, maintain electrical continuity, and are corrosion resistant. This results in high levels of attenuation without deterioration.
該屏蔽室由2mm鉬亞鐵鋼的屏蔽板組成。該板是鍍鋅的，以使殼體有卓越的耐腐性。Amucor 6800墊圈在板之間有助于保持屏蔽衰減。該模塊化屏蔽不包含任何的木制部件以抑制溫度變化或潮濕的影響。該板提供了高的屏蔽效能，維持電連續性，和耐腐蝕性。這個引起高水平的衰減而沒有退化。

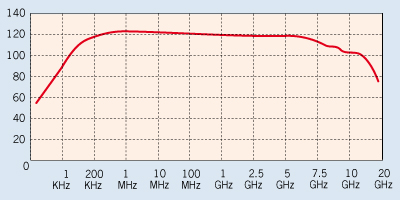

Shielding performance屏蔽性能 (dB)
Smooth exterior, functional interior平滑的外部面，實用的內部面
The panels are bolted together along their edges on the inside, leaving a smooth exterior. Lighting, bus bar and furnishings can be mounted directly on the bendings of the panel interiors. Versions for direct attachment of ferrite and RF pyramidal absorbers can also be supplied, to create an echo-free (anechoic) test chamber.
該板沿著內側邊緣用螺釘固定在一起，留下一個光滑的外表面。照明，總線和裝飾等直接安裝在面板內側的彎曲部分。
Benefits好處
- Self-standing construction 自立結構
- High shielding performance without deterioration 高屏蔽效能沒有衰退
- Easy to mount with local skilled workers 本地的熟練工人很容易進行安裝
- Easy to modify, enlarge or reinstall 容易變更，擴大或重新安裝
- Many sizes from stock, specials within a few weeks 許多尺寸有庫存，特殊指定的也在幾周內交貨
- Optionally supplied as a kit for assembly by the user 由用戶作為一套組建供應
- Optionally with 10 years guarantee & maintenance 10年質保與維護
Options選件
All options listed directly below can be customized, e.g. with an automatic sliding door, double leaf door, customized shielded ventilation panels, different dimensions, etc.
所有的選件列明如下，可以被定制，例如：帶有一個自動滑門，雙葉門，定制的屏蔽通風板，不同的尺寸，等等。
- Shielded honeycomb ventilation panels 屏蔽的蜂窩通風板
- Shielded doors 屏蔽門
- Shielded water piping and gases 屏蔽的水管線路和氣體
- Lightweight version 輕量版
- Entry panel fitted with: 入口板裝配有
- Power filters電源濾波器, single單相 +N or three phase三相 +N
(specify amps, voltage and frequency指定電流，電壓和頻率) - Feed through signal filters 饋通信號濾波器
- Wave guides for passage of fiber-optic cables 用于光纖電纜的波導
- Feed trough penetration饋通穿過 (e.g. SMA or BNC connector連接器)
- Grounding bolt地腳螺栓
|
Standard door dimensions標準門尺寸
|
| ||||||||||||||||||||||||||||||
|
Standard cage dimensions標準箱體尺寸
|
| ||||||||||||||||||||||||||||||
Easy modification容易更改

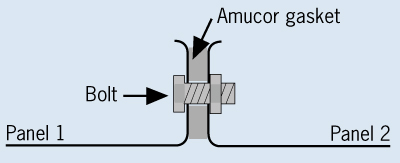

The modular Faraday cage can be modified, enlarged or reinstalled very easily with conventional hand power tools. Corner panels are identical to the intermediate joints, and have reliable shielding attenuation equal to that of the rest of the enclosure. Examples of panel joints are shown below.
模塊化法拉第箱體能被改進，擴大或重新安裝非常容易地用常規的手動工具。轉角板是同一的與中間體接頭，有可靠的屏蔽衰減與支撐的殼體相等。下面有節點的例子。
Construction details施工詳圖
